HR3008010-U

Keyboard Features

Dimensions: 400mm*118mm

68 keys, made of high-quality stainless steel

Desktop industrial keyboard with touchpad mouse. The stainless steel surface is specially treated to prevent key paint from peeling, and is resistant to sweat, stains, corrosion, dust, water, impact, and drilling.

Keycap characters are black, with colored function key icons

*Keycap text and icons are etched, and the paint is specially treated

*Custom keycap designs available upon request

·Key values can be defined according to customer requirements

Product Features

■ Comfortable typing feel, fatigue-free with long-term use (single key pressure: approx. 110g)

■ Ergonomic design with a slight tilt (approx. 5 degrees)

■ Reasonable structural design, elegant appearance

■ Backlight option available

■ Designed for desktop placement

Operating Environment

■ Operating temperature: -10℃ to +60℃

■ Storage temperature: -25℃ to +70℃

■ Relative humidity: 25% to 85%

Communication Interfaces Available

USB interface

RS232 interface

TTL interface

Matrix interface

Switch Performance

■ Lifespan: 1 million cycles

■ Actuation force: 1.2N ±0.2N

■ Key travel: ≥1.2mm

Product Image

HR3008010-U (400mm*118mm)

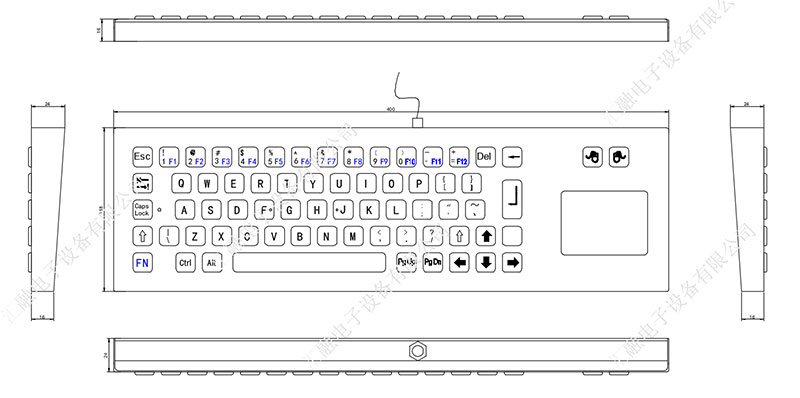

Installation diagram and key layout
