Metal Keypad HR2136010
Product Features
  • 304# Stainless Steel Panel
  • Rational structural design with compact footprint
  • Stable and reliable keypad performance
Operating Environment
  • Operating Temperature: -10°C ~ +60°C
  • Storage Temperature: -25°C ~ +70°C
  • Relative Humidity: 25% ~ 85%
  • Ingress Protection: IP65 (front panel)
Communication Interfaces (Optional)
  • ○ USB Interface
  • ○ RS232 Interface
  • ○ TTL Interface
  • ● Matrix Interface
Switch Specifications
  • Lifecycle: 1 million actuations
  • Actuation Force: 3.5N ± 0.5N (positive pressure)
  • Travel Distance: ≥ 0.45mm
Technical Specifications
Physical Parameters
Panel Dimensions 68 × 90 mm
Key Count 12
Key Dimensions 13.8 × 13.8 × 4.5 mm
Key Travel ≈ 0.45 mm
Actuation Force ≈ 350 gf
Key Lifecycle Approx. 1 million cycles
Material Front Panel: SUS304 Stainless Steel
PCB Finish ENIG (Electroless Nickel Immersion Gold)
Contact Method Metal Dome (Snap Dome)
Product Images

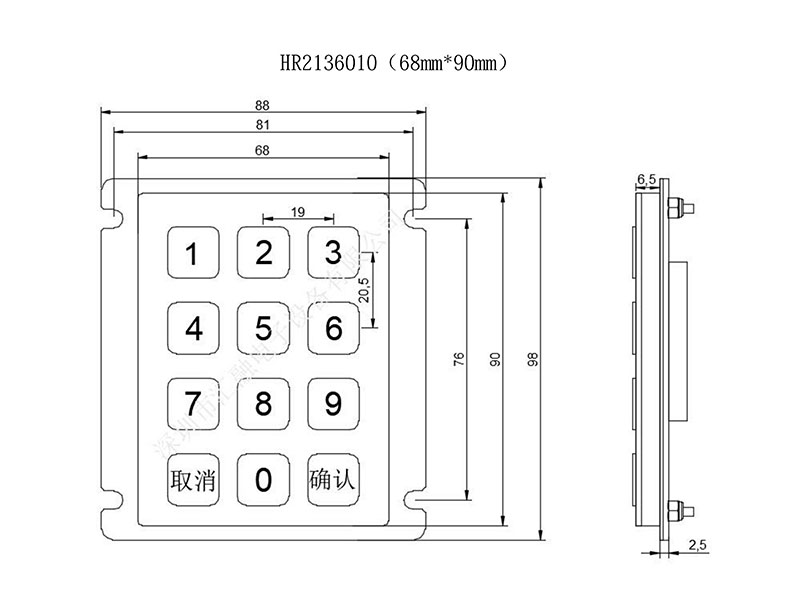

Product Dimensional Drawing

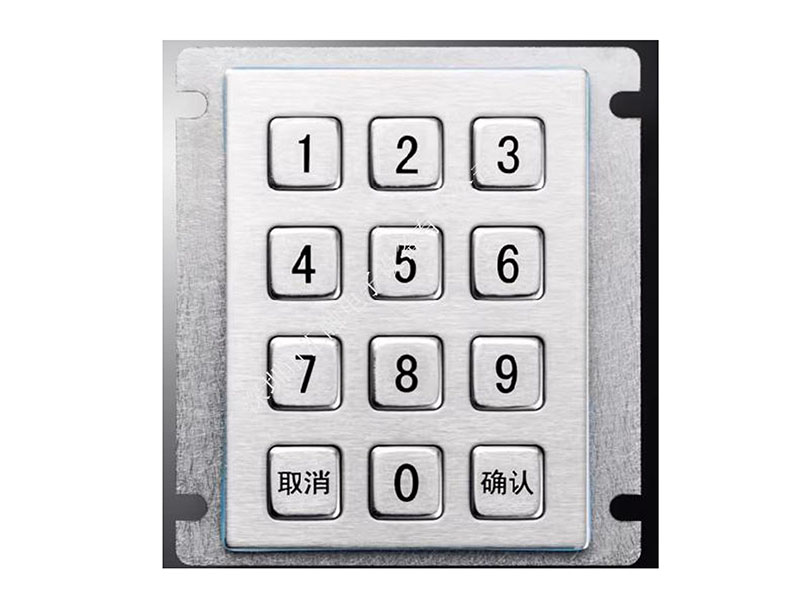

Product Photo
